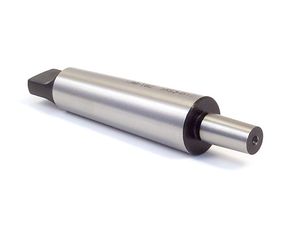

Vrtací trn s ploškou, se stopkou DIN238 MS/B DM-192
Technické údaje:

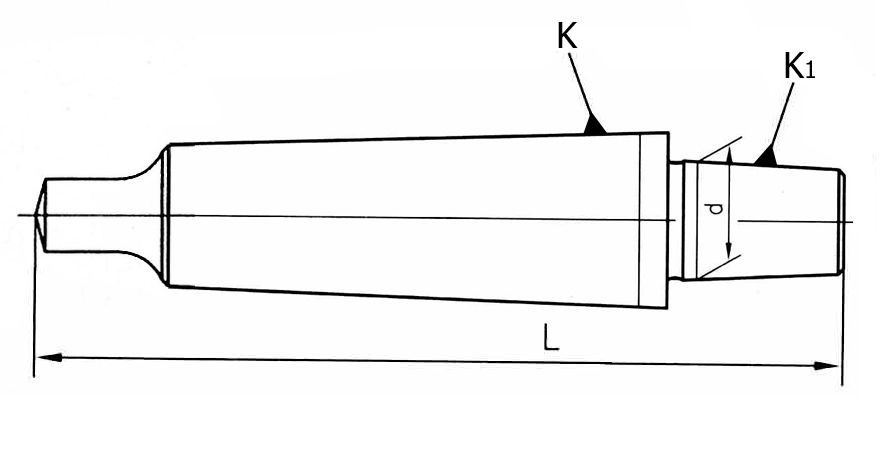

Model
DM 192 K-K1
|
K
Morse
|
K1
DIN 238
|
d
[mm]
|
L
[mm]
|
Cena
Kč
|
DM 192 MS2 - B12 |
2 |
B12 |
12,065 |
105 |
130 |
DM 192 MS2 - B16 |
2 |
B16 |
15,733 |
112 |
130 |
DM 192 MS2 - B18 |
2 |
B18 |
17,780 |
120 |
130 |
DM 192 MS2 - B22 |
2 |
B22 |
21,793 |
128 |
130 |
|
|
|
|
|
DM 192 MS3 - B12 |
3 |
B12 |
12,065 |
124 |
149 |
DM 192 MS3 - B16 |
3 |
B16 |
15,733 |
131 |
149 |
DM 192 MS3 - B18 |
3 |
B18 |
17,780 |
139 |
149 |
DM 192 MS3 - B22 |
3 |
B22 |
21,793 |
147 |
149 |
|
|
|
|
|
DM 192 MS4 - B16 |
4 |
B16 |
15,733 |
156 |
213 |
DM 192 MS4 - B18 |
4 |
B18 |
17,780 |
164 |
213 |
DM 192 MS4 - B22 |
4 |
B22 |
21,793 |
172 |
213 |
|
|
|
|
|
DM 192 MS5 - B16 |
5 |
B16 |
15,733 |
188 |
339 |
DM 192 MS5 - B18 |
5 |
B18 |
17,780 |
196 |
339 |
DM 192 MS5 - B22 |
5 |
B22 |
21,793 |
204 |
339 |
|
