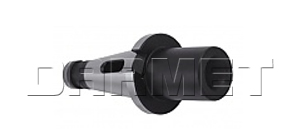

| MAS 403-FV 1663 |
|||||||||||
 |
|||||||||||
 |
 |
||||||||||

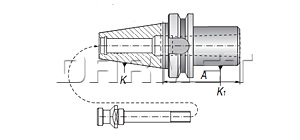

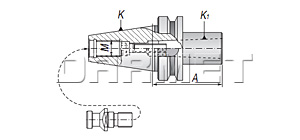

| K (7:24) | K1 (Morse) | A | M | Rys. | Váha (kg) | Kód: |
|---|---|---|---|---|---|---|
| 30 | 1 | 45 | M12 | 1 | 0,30 | BT30.A45.MK1FV |
| 30 | 2 | 60 | - | 2 | 0,40 | BT30.A60.MK2FV |
| 40 | 1 | 45 | M16 | 1 | 0,90 | BT40.A45.MK1FV |
| 40 | 2 | 60 | M16 | 1 | 1,20 | BT40.A60.MK2FV |
| 40 | 3 | 75 | - | 2 | 1,00 | BT40.A75.MK3FV |
| 40 | 4 | 85 | - | 2 | 1,50 | BT40.A85.MK4FV |
| 50 | 1 | 45 | M24 | 1 | 3,00 | BT50.A45.MK1FV |
| 50 | 2 | 45 | M24 | 1 | 3,00 | BT50.A45.MK2FV |
| 50 | 3 | 60 | M24 | 1 | 3,10 | BT50.A60.MK3FV |
| 50 | 4 | 75 | M24 | 1 | 3,10 | BT50.A75.MK4FV |
| 50 | 5 | 75 | - | 2 | 3,00 | BT50.A75.MK5FV |
| NORMY MAS 403-BT | ||||||||||||||||||
 |
||||||||||||||||||
| SK | D1 | bH12 | d2 | g | L1 | L2 | L3 | L4 | L5 | t | D4 | D5 | e | v | x | x1 | y | y1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 31,75 | 16,1 | 12,5 | M12 | 484 | 24 | 34 | 7 | 17 | 16,3 | 38 | 46 | 20 | 13,6 | 4 | 8 | 2 | 2 |
| 40 | 44,45 | 16,1 | 17,9 | M16 | 65,4 | 30 | 43 | 9 | 21 | 22,6 | 53 | 63 | 25 | 16,6 | 5 | 10 | 2 | 2 |
| 50 | 69,85 | 25,7 | 25,0 | M24 | 101,8 | 45 | 62 | 13 | 31 | 35,4 | 85 | 100 | 35 | 23,2 | 7 | 15 | 3 | 3 |
